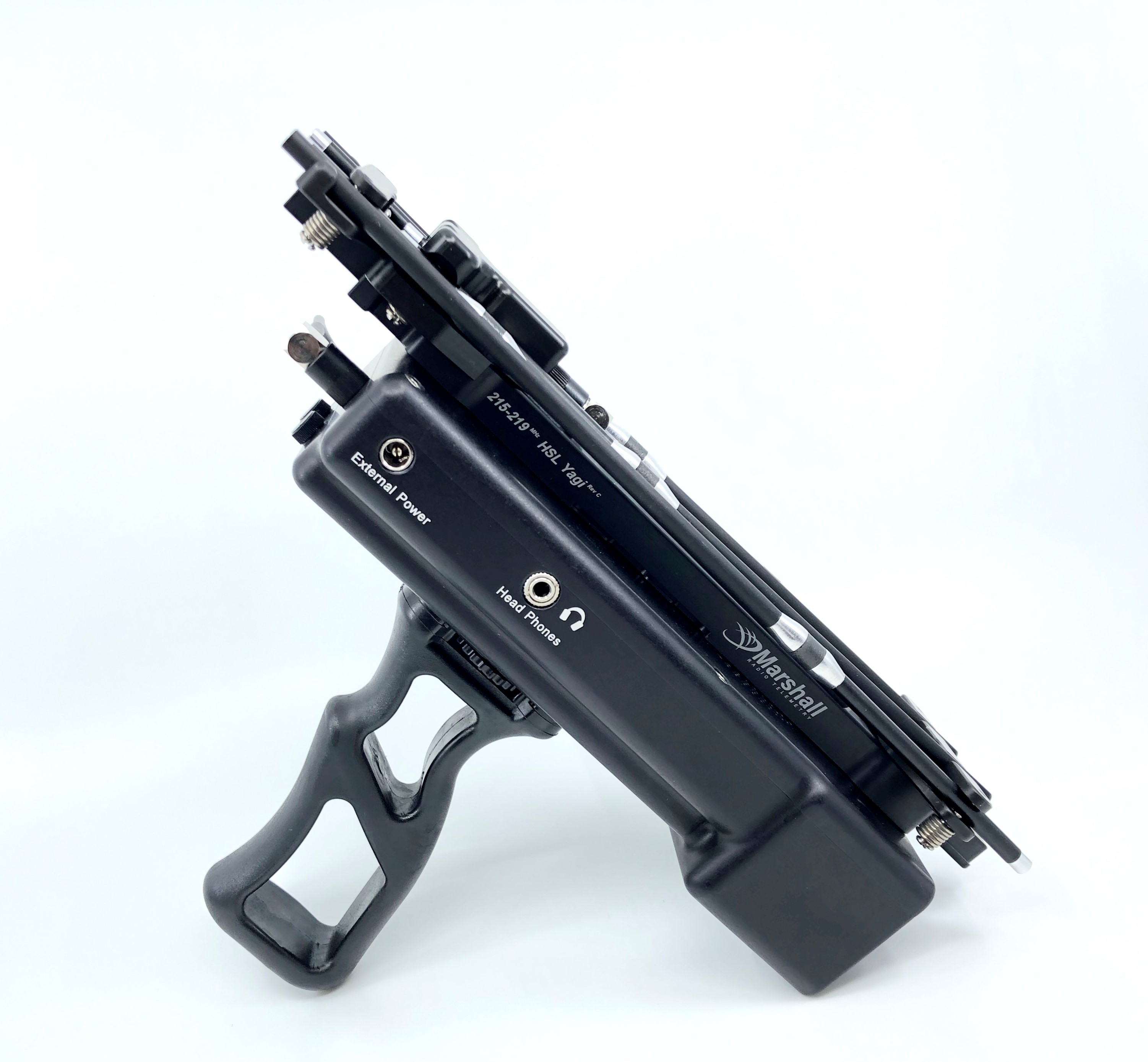

Field Marshall Digital 800 Tracking Receiver

¥7,500.00

Building on the success of the original Field Marshall design, the next generation still retains the features customers loved on the first receiver such as the tiny yagi antenna, compact and portable form factor, and superior range over VHF based receivers. This receiver offers several features such as temperature compensation (no need to re-tune when chasing a far off signal as the temperature changes), improved pin point accuracy for searches up to the last few feet, and even better sound quality.

Each receiver still comes with a field holster, but it’s very small shape and size makes it a “pocket receiver” capable of being slipped into your Hawking bag or section of your Pineo Hawking Vest.

FM VHF 800:  (Frequencies 216-219)

SKU: FM800-CHINA Category:

Description



MAXIMUM SENSITIVITY
Getting the best range requires having the most “useful sensitivity” in a receiver. The combination of receiver, the matching cable and the antenna designed for specifically for it constitute a complete package that must work in harmony to achieve the most sensitivity possible. The Digital Field Marshall will give the most range of any Tracking Receiver in the World.  Nothing goes farther than the Field Marshall, especially in cities or areas of “unwanted radio noise.”  With better than -154dBm sensitivity, the Field Marshall can discern the weakest signals.

MORE FREQUENCY CHOICES

The Field Marshall 800 gives you the first 200KHz (20 channels) on each of 4 bands (216,217,218,219), allowing you to space transmitters out further (to avoid bleed over) or to put dog collars on a separate band from falconry transmitters.

EASY TUNING

Tuning with the enhanced tune knob is broad and is protected from accidental contact so it’s not easily bumped off your tune setting when getting in and out of the vehicle.

LIGHT WEIGHT
Using newest generation electronic components, a Half Size collapsible yagi and creative packaging allows us to fit a lot into a small space.

And, our commitment to using aluminum alloys which have the maximum strength to weight ratios makes this receiver as light and strong as technically possible.

WATER RESISTANT

Almost. The receiver is not designed to be used in very wet conditions, yet it will hold up in light rain. If it is accidentally submerged through accident or fall, it should be drained and allowed to dry before re-using.

OPTION TO USE VEHICLE TO POWER RECEIVER

The car adapter is designed to bypass the batteries and power the receiver for extended periods inside the vehicle in order to save the batteries, to preserve them for long walks away from the car. The cigarette lighter adapter can found in the accessories. The Field Marshall uses common easy to find AAA batteries which are not rechargeable.

WHAT BATTERIES TO USE

For general use,  Alkaline AAA batteries are the most cost effective and provide good battery life but Lithium AAA batteries offer the best performance in cold weather, are the lightest, and last the longest.  Remember to always remove batteries from your receiver during periods of long storage (off season).  Rechargeable batteries (such as NiCad or NiMH) should not be used as they do not provide sufficient and consistent voltage to operate the receiver effectively.

Always use name brand batteries (like Energizer or Duracell) with a comprehensive warranty, in case there is ever an accident with the actual batteries inside your receiver.

OPTION TO USE WITH OMNI ANTENNA

The Field Marshall easily excepts input from an external antenna, simply remove the coaxial cable from the receiver body, and plug in the coaxial cable from your external antenna. The Field Marshall uses a ‘SMB’ connector, most omni antennas use the larger ‘BNC’ connector. A simple adapter (included with the purchase of an omni from Marshall Radio) can be used to connect other vehicle mounted antennas to your Marshall Receiver.

HALF SIZE COLLAPSE YAGI ANTENNA

The Field Marshall 800 comes standard with our miniature “Half Size” Yagi antenna, making one of the smallest VHF receivers available, even more compact and easy to use in the field.



Additional information

Weight 3 kg
Dimensions 14 × 7 × 4 cm
