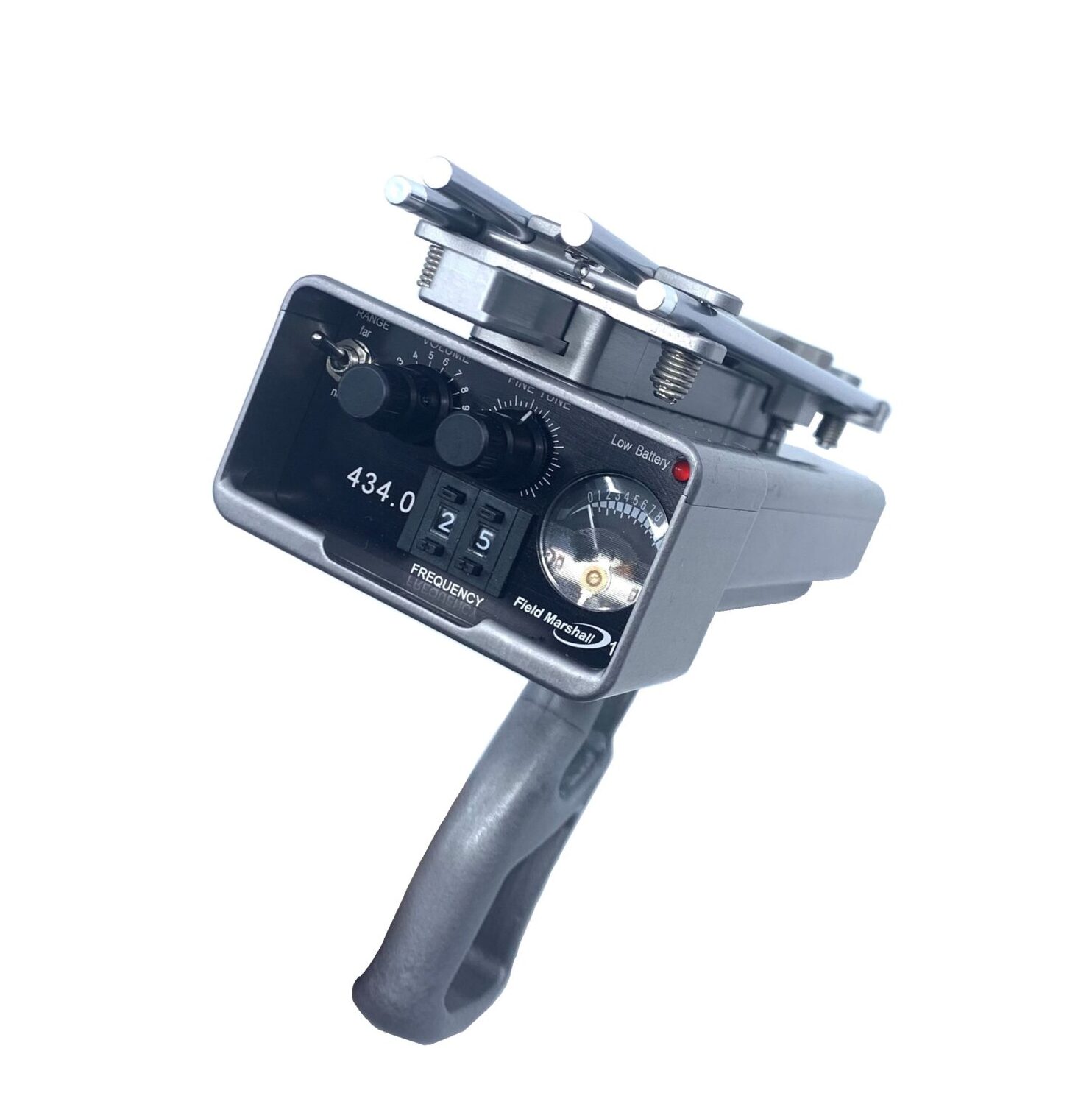

Field Marshall Digital Tracking Receiver UHF

Starting At: 800.00

Building on the success of the original Field Marshall UHF design, the next generation still retains the features customers loved on the first UHF receiver such as the tiny yagi antenna, compact and portable form factor, and superior range over VHF based receivers. This receiver offers several features such as temperature compensation (no need to re-tune when chasing a far off signal as the temperature changes), improved pin point accuracy for searches up to the last few feet, and even better sound quality. It also has a new distinctive color scheme, which identifies our UHF equipment line going forward.

The Field Marshall UHF provides falconers in the UK and EU the best performance of any tracking receiver available today.

Each receiver still comes with a field holster, but it’s very small shape and size makes it a “pocket receiver” capable of being slipped into your Hawking bag or section of your Pineo Hawking Vest.

FM UHF 100: (Frequency 434)
FM UHF 500:   (Frequencies 434)
FM UHF 2000: (Two band selections 433 and 434)

Clear
SKU: FMUHF-UHF-EU Categories: ,

Description

MAXIMUM SENSITIVITY
Getting the best range requires having the most “useful sensitivity” in a receiver. The combination of receiver, the matching cable and the antenna designed for specifically for it constitute a complete package that must work in harmony to achieve the most sensitivity possible. The Digital Field Marshall will give the most range of any Tracking Receiver in the World.  Nothing goes farther than the Field Marshall, especially in cities or areas of “unwanted radio noise.”  With better than -154dBm sensitivity, the Field Marshall can discern the weakest signals.

USE WITH GPS

Adding a Field Marshall UHF to your GPS system allows you to precisely locate the transmitter inside GPS denied environments (inside a building, or locate the signals when GPS satellites are blocked), or when the transmitter is in thick cover.  Using the Field Marshall UHF to track the “Beeping” signal from the RT and Turbo GPS extends range when the transmitter is close to the ground.

EASY TUNING

Tuning with the enhanced tune knob is broad and is protected from accidental contact so it’s not easily bumped off your tune setting when getting in and out of the vehicle.

LIGHT WEIGHT
Using newest generation electronic components, a collapsible yagi and creative packaging allows us to fit a lot into a small space.

And, our commitment to using aluminum alloys which have the maximum strength to weight ratios makes this receiver as light and strong as technically possible.

WATER RESISTANT

Almost. The receiver is not designed to be used in very wet conditions, yet it will hold up in light rain. If it is accidentally submerged through accident or fall, it should be drained and allowed to dry before re-using.

OPTION TO USE VEHICLE TO POWER RECEIVER

The car adapter is designed to bypass the batteries and power the receiver for extended periods inside the vehicle in order to save the batteries, to preserve them for long walks away from the car. The cigarette lighter adapter can found in the accessories. The Field Marshall uses common easy to find AAA batteries which are not rechargeable.

WHAT BATTERIES TO USE

For general use,  Alkaline AAA batteries are the most cost effective and provide good battery life but Lithium AAA batteries offer the best performance in cold weather, are the lightest, and last the longest.  Remember to always remove batteries from your receiver during periods of long storage (off season).  Rechargeable batteries (such as NiCad or NiMH) should not be used as they do not provide sufficient and consistent voltage to operate the receiver effectively.

Always use name brand batteries (like Energizer or Duracell) with a comprehensive warranty, in case there is ever an accident with the actual batteries inside your receiver.

OPTION TO USE WITH OMNI ANTENNA

The Field Marshall easily excepts input from an external antenna, simply remove the coaxial cable from the receiver body, and plug in the coaxial cable from your external antenna. The Field Marshall uses a ‘SMB’ connector, some external antennas may require an adapter.

COMPACT COLLAPSIBLE YAGI ANTENNA

The Field Marshall UHF comes with our latest generation collapsible yagi antenna as standard.

Coverage

The Field Marshall 100 covers the first 100KHz of the band (434.000-434.099)
The Field Marshall 500 covers the first 500KHz of the band (434.000-.499)
The Field Marshall 2000 covers 2 Full Bands (433.000-434.999)



Additional information

Weight 3 oz
Dimensions 12 × 10.3 × 2 in
Model

FM500 434 MHz, FM2000 433 and 434 MHz, FM100 434

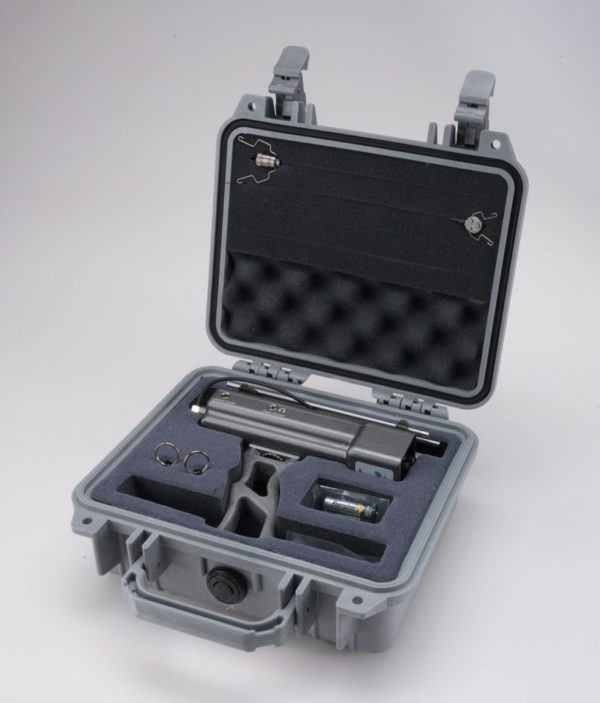

Add Desert Case

No, Yes (+€175)
