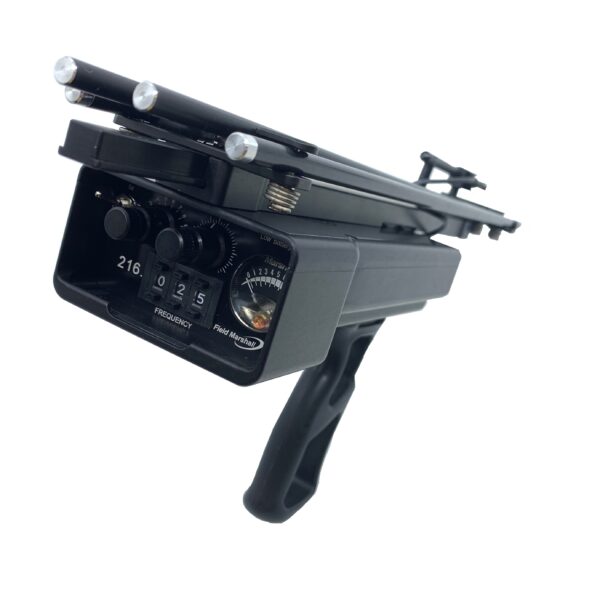

Field Marshall Digital Tracking Receiver VHF

Starting At: $695.00



Our Digital Field Marshall gives you the most sensitivity available in a tracking receiver.

This premium receiver offers more volume (with speakers on top and bottom), a new ultra-compact case design featuring a “Quick-Release” handle, improved LED front lighting of the control panel for night tracking, improved water resistance for use in wet weather, and the latest generation of Marshall’s exclusive collapsible yagi antenna now with cable-free operation.

Also, exclusive to the Field Marshall is the addition of polyphase filters, our new noise floor reduction technology that reduces the background noise while increasing the effective range and tracking ease.

FM100: (173 or 216) equipped w/ Full Size Yagi Antenna

Clear
SKU: FM-EU-WORLDWIDE Category:

Description



MAXIMUM SENSITIVITY
Getting the best range requires having the most “useful sensitivity” in a receiver. The combination of receiver, the matching cable and the antenna designed for specifically for it constitute a complete package that must work in harmony to achieve the most sensitivity possible. The Digital Field Marshall will give the most range, especially in cities or areas of “unwanted radio noise.”

PICK UP ANY FREQUENCY YOU WANT
An all-digital circuit allows the same receiver to pick up any frequency in the 215 through 219 MHz bands allowing every frequency you could possibly want or just the ones you need to match.

Best of all, if you change your mind down the road, your same receiver can easily be converted to a different band thus protecting your investment.

EASY TUNING

Tuning with the new tune knob is broad and is protected from accidental contact so it’s not easily bumped off your tune setting when getting in and out of the vehicle.

Higher Sensitivity: With the new digital receiver board inside the Field Marshall, we’ve improved sensitivity by another 3dB so that it is the best possible. This means a significant increase in reception distance for the same transmitter.

The actual sound of the receiver has been improved through the elimination of harsh harmonics and distortion, making it easier to track weak signals and far more pleasant to listen to.

Three red LEDs now illuminate the entire control panel for better clarity in the dark without compromising your night vision.

LIGHT WEIGHT
Using newest generation electronic components, a collapsible yagi and creative packaging allows us to fit a lot into a small space.

And, our commitment to using aluminum alloys which have the maximum strength to weight ratios makes this receiver as light and strong as technically possible.

WATER RESISTANT

Almost. The receiver is not designed to be used in very wet conditions, yet it will hold up in light rain. If it is accidentally submerged through accident or fall, it should be drained and allowed to dry before re-using.

OPTION TO USE VEHICLE TO POWER RECEIVER

The car adapter is designed to bypass the batteries and power the receiver for extended periods inside the vehicle in order to save the batteries, to preserve them for long walks away from the car. The cigarette lighter adapter can found in the accessories. The Field Marshall uses common easy to find AAA batteries which are not rechargeable.

WHAT BATTERIES TO USE

For general use,  Alkaline AAA batteries are the most cost effective and provide good battery life but Lithium AAA batteries offer the best performance in cold weather, are the lightest, and last the longest (but cost significantly more). Rechargeable batteries (such as NiCad or NiMH) should not be used as they do not provide sufficient and consistent voltage to operate the receiver effectively.

Always use name brand batteries (like Energizer or Duracell) with a comprehensive warranty, in case there is ever an accident with the actual batteries inside your receiver.

OPTION TO USE WITH OMNI ANTENNA

The Field Marshall easily excepts input from an external antenna, simply remove the coaxial cable from the receiver body, and plug in the coaxial cable from your external antenna. The Field Marshall uses a ‘SMB’ connector, most omni antennas use the larger ‘BNC’ connector. A simple adapter (included with the purchase of an omni from Marshall Radio) can be used to connect other manufacturers antennas to your Marshall Receiver.

Additional information

Weight 3 lbs
Dimensions 14 × 3 × 2 in
Model and Frequency

FM100 173, FM100 216
